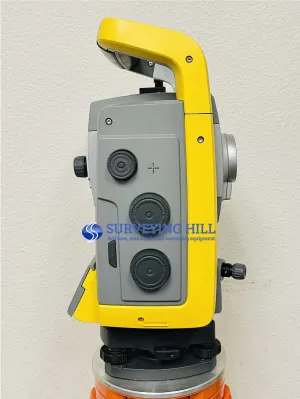

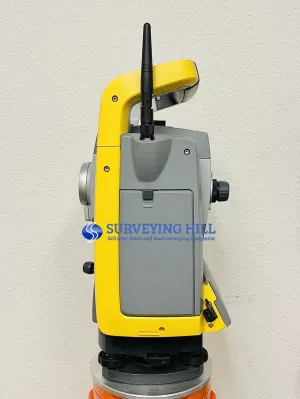

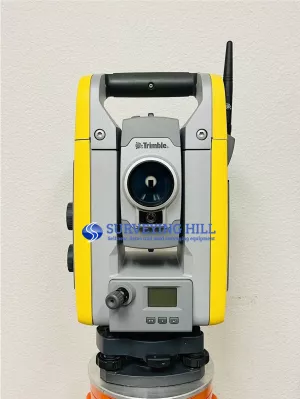

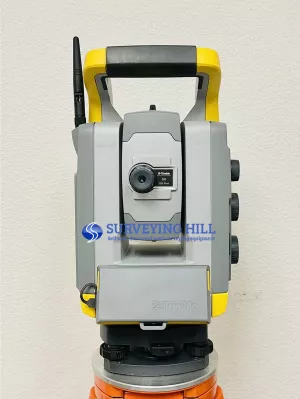

Trimble S6 DR Plus 3 Sec Robotic Total Station

Sale Trimble S6 DR Plus 3” Sec with Vision Robotic Total Station Complete Set. This set up is in great condition, been shop tested and Calibrated, ready to be put to work directly upon arrival.

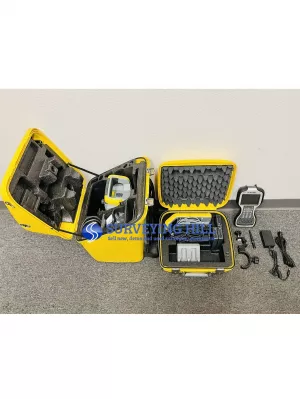

Includes

• Trimble S6 DR+ Plus with Vision 3” Sec Robotic Total Station
• Trimble TSC 3 w/ Access v. 2017.24 & 2.4 GHz Radio

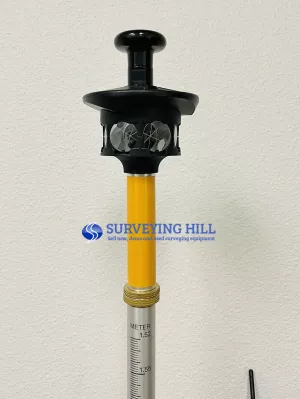

• 360 Prism (New)
• Trimble Dual Battery Charger
• 3 Robotic Total Station Batteries
• TSC 3 Charger

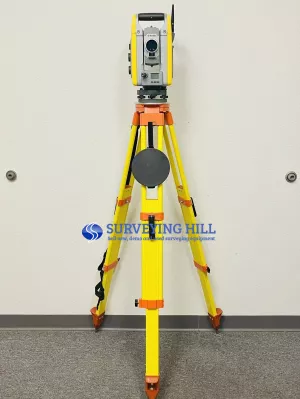

• Tripod  (New)
• Prism Pole  (New)
• Bi-pod  (New)

Trimble S6 Robotic Total Station

Trimble S6 total station offers field-proven optical and GPS integration in a field to office. The controller of your choice connects without wires to the GPS system. It can be changed between detectors, collecting all information into a single job file for data transfer.

A Servo, Autolock or Robotic Total Station with MagDrive Technology

Trimble S6 Total Station supplies the ability and flexibility required by today’s surveying professionals. Using Trimble VISION technologies, the Trimble S6 Total Station enables surveyors to remotely see and measure through a live video feed from the tool on their data control. The Trimble S6 Robotic redefines surveying tool performance with an unsurpassed integration of servos, angle sensors, and measurement technology.

The Trimble S6 Robotic Complete Station offers innovative MagDrive technologies for stunning speed. It takes the work from servo or surveying.

Numerous features and the latest technologies will catapult your productivity and profitability. And as an upgradable studying solution, the Trimble S6 Robotic Total Station will grow with your business.

The advanced error compensation of the instrument provides precise measurements every time. Together with MagDrive servo technology’s smooth servo motors, the Trimble S6 offers exceptional speed and accuracy.

The target for Both Active and Passive Tracking

Choose from passive or active monitoring with the Trimble MultiTrackTM Target, the only target of its type in the surveying industry. Active tracking ensures you find and lock to the target. When you are using the Trimble MultiTrack Goal, nearby reflective surfaces, like road signs, cars, safety vests, and other prisms, won’t disrupt your surveys.

The Trimble S6 Robotic Total Station will lock and monitor a huge array of aims and standard prisms to exceptional selection. Surveyors can choose between active and passive tracking with the Trimble ® MultiTrack Target. Opportunities in most applications that are surveying expand.

Quicker Measurements

If MagDrive and MultiTrack speed still aren’t sufficient, the robotic Trimble S6 instrument goes to the extreme using Trimble GPS Search. A function in field applications, GPS Search, employs GPS to locate a prism that is missing quickly. In just 3 seconds the Trimble S6 can zip to the correct position and lock onto the autonomous rover

GPS Search is a characteristic in Trimble Survey Controller field software that works together with the Trimble MultiTrack Goal to Boost Trimble S6 Total Station speed.

Features

• Now available with Trimble VISION technology for video robotic control and scene documentation
• Trimble DR Plus technology for long range and superior accuracy
• Unmatched fast and smooth performance with MagDrive servo technology
• Trimble SurePoint accuracy assurance automatically corrects instrument pointing
• Fully upgradable from Servo to Autolock and Robotic technologies
• Angular Accuracy: 3″
• Radio Side Cover: Yes
• Bluetooth Module: Yes

MagDrive Servo Technology: Aiming is faster and more precise than ever before. Trimble’s MagDrive servo technology silently spins the instrument through 180º in three seconds, while still providing ultra-fine control for precise pointing.

Surepoint Accuracy Assurance: For the highest possible positioning accuracy, the Trimble S6 offers SurePoint technology. SurePoint guards against the sinkage, vibration, and handling that can affect an instrument after setup. Its automatic pointing correction monitors and corrects the effects of tilt axis and collimation, so you can measure with speed and confidence.

DR Technology: Direct Reflex (DR) technology from Trimble enables measurement without a prism even to extreme distances. Hard-to-reach or unsafe targets are no obstacle to the Trimble S6. Measure quickly and safely without compromising accuracy.

Coaxial Optics, EDM, Tracker, Laser Pointer: In Face 1 or Face 2, whether aiming manually or with the tracker, the Trimble S6 lets you measure exactly what you see. The Trimble S6 optics by Carl Zeiss are fully coaxial for full measurement confidence.

Trimble Multitrack Target for Passive and Active Tracking: Choose from active or passive tracking via the Trimble® MultiTrack™ Target. The flexibility of MultiTrack technology expands opportunities in all surveying applications. Active tracking ensures that you always locate and lock on to the correct target. With the Trimble MultiTrack Target nearby reflective surfaces, including road signs, cars, warning vests, and other prisms, will not disrupt your surveys. Active tracking also offers longer range, and the 360 degree active LED rings ensure accurate target tracking from any angle.

Control: Start with the unmatched accuracy of the Trimble S6 and add the advanced field data management software in the controller. You’ll find that bringing in control is faster than ever before. Automated routines check your work as you go, virtually eliminating costly revisits.

Topgraphic Surveying: With Autolock and MagDrive servo technology you can measure and log points as fast as you can walk. The graphic map updates with the points you’ve collected in real time so it’s easy to see what you’ve done and where you need to go next.

Stakeout and Roading: Trimble software automates the stakeout of points, centerlines, offsets, slopestakes, and more. A graphic representation of the road cross-section clearly shows your position relative to the road. The instrument quickly guides you to the target and provides cut and fill information. And with robotic surveying you’ll increase your stakeout productivity by 80%.

Long-range Direct Reflex: Trimble’s proprietary high-accuracy DR capability opens up a new world of applications. Objects that were previously difficult or impossible to reach can now be measured as easily as those measured with a prism. Visible property boundaries and corners can be measured without gaining access. Overhead cables, tunnels, bridges, quarry faces, buildings, and elevations can all be measured easily and safely.
