Leica TS12 P 5" R400 Robotic Total Station

Leica TS12 P 5” R400 Robotic Total Station for sale, complete set with Leica CS15, Leica RH16 Radio Handle RH16. Been tested and serviced by Leica authorized, everything is in excellent and ready to working to survey condiiton

This Leica TS12 P 5” R400 set up is in very good condition and ready to go to work, unit has Electronic Guide lights (EGL), PowerSearch (PS), Distant measurement (IR-Mode), Automatic target Recognition (ATR) and bluetooth, Leica Extended Geocom turned on. The Leica RH16 for long range bluetooth communication. The On-board programs include Survey, Set up, Stakeout, Cogo, Determine Coordinate, GPS Survey and import DXF. The Leica CS15 data collector has the CTR16 LRBT cap. It is in good shape with Viva SmartWorx

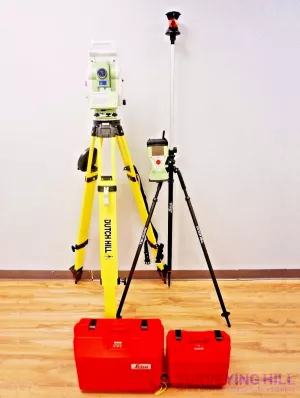

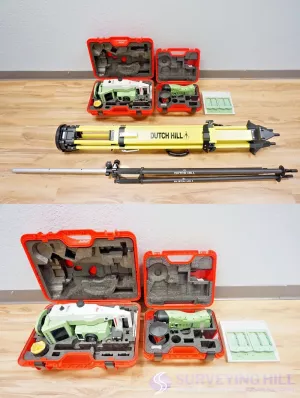

Sale includes:

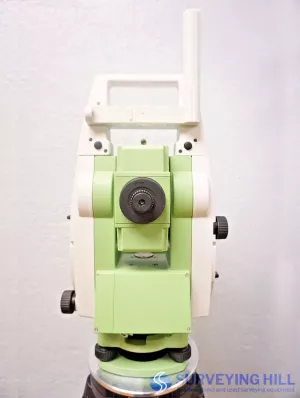

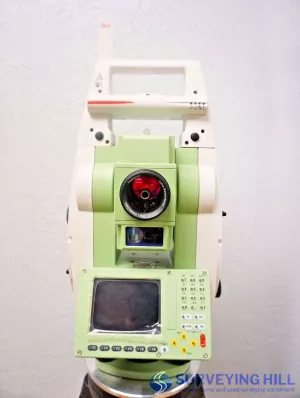

• Leica TS12 P 5″ sec Station
• Leica RH16 (LRBT)Handle
• (2x) Batteries for the Station
• Smart Charger
• Leica CS15 data Collector with CTR16 Cap
• (2x) Cases

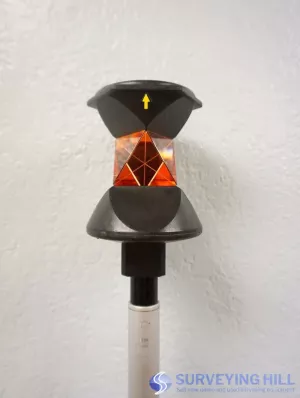

• 360 Prism
• Dutch Hill Tripod
• Dutch Hill Bipod
• Dutch Hill Prism Pole

Discover the power of efficient, reliable robotic surveying with the Leica TS12 P 5″ R400 Robotic Total Station. Designed for professional surveyors and contractors who demand high accuracy and automation, the TS12 P delivers 5″ angular precision, advanced reflectorless measurement up to 400 m, and seamless robotic workflows.

Equipped with Leica’s industry-leading PowerSearch sensor and Automatic Target Recognition (ATR), this instrument finds, locks and measures any prism type in seconds — reducing setup time and boosting on-site productivity. The R400 reflectorless mode adds flexibility, enabling measurements without a prism on surfaces up to 400 m away.

Built for real-world job sites, the TS12 P features motorised drives for automatic alignment, remote radio/Bluetooth connectivity, and compatibility with Leica field controllers (such as the CS15 or CS10) and SmartWorx software. With its rugged build (IP54 rating, wide operating temperature range) and accurate sensor suite, it’s the go-to choice for construction layout, machine-control guidance, site topography and infrastructure survey work.

Whether you’re staking out foundations, guiding earth-moving equipment or establishing survey control networks, the Leica TS12 P 5″ R400 gives you the precision, speed and flexibility you need. Upgrade your surveying toolkit today and experience the difference that robotic automation can bring.

Leica TS12 P 5″ R400 Robotic Total Station

The Leica TS12 P 5″ R400 Robotic Total Station represents a high-performance, mid-range robotic surveying instrument engineered for professional surveyors, contractors and machine-control applications. With a 5″ (≈1.5 mgon) angular accuracy, the “P” (Performance) version of the TS12 series comes equipped with the long-range R400 reflectorless EDM option, integrated drive motors, remote/robotic control capability, and the industry-leading Leica performance suite including PowerSearch prism acquisition, PinPoint EDM, Automatic Target Recognition (ATR) and multiple connectivity options.

Why Choose the TS12 P 5″ R400

• Precision & accuracy – The 5″ angular measurement ensures the TS12 P delivers the accuracy demanded for reliable stake-out, control surveys or machine-control guidance.
• Robotic productivity – With full automation (motorised drives, remote radio/BT control, single-operator workflow) the TS12 P dramatically increases productivity on site compared to manual total stations.
• Reflectorless versatility with R400 – The “R400” option enables reflectorless measurement up to 400 m (in non-prism mode) while retaining full prism-range capability, giving greater flexibility in challenging site conditions.
• Reliable sensor suite – The TS12 series incorporates Leica’s PinPoint EDM technology, unique PowerSearch target-recognition camera, and robust electronic compensator, ensuring dependable performance even in demanding field environments.
• Field-ready build – Designed for site environments, the instrument supports operations in wide temperature ranges (-20 °C to +50 °C), is sealed to - IP54 and uses a stable laser plummet, making it suitable for harsh or mobile job-site conditions.

Key Features & Specifications

Angular Measurement

• Angular accuracy: 5″ (1.5 mgon) for horizontal and vertical axes in the TS12 P variant.
• Display resolution: 0.1″ (0.1 mgon) for fine reading of angle values.
• Angle measurement method: absolute, continuous diametrical circle read by linear CCD array.
• Electronic compensator: dual/quad-axis compensation with setting accuracy approx. 1.0″ (0.3 mgon) for the “P” model.

Distance Measurement & Reflectorless Capability

• Prism-based measurement (Round prism GPR1): up to ~3,500 m under ideal conditions (TS12 series)
• Reflectorless measurement (PinPoint R400 mode): Up to 400 m to any surface with 2 mm + 2 ppm accuracy (typical) in non-prism mode.
• Reflectorless measurement provides freedom from prism placement in certain workflows (for example facades, stockpiles, inaccessible points).

Robotic / Automation

• Motorised horizontal and vertical drives enable automatic alignment to prism, slewing, search/lock/measure workflows.
• PowerSearch sensor: enables rapid prism detection and tracking — “Search-Lock-Measure” workflow.
• Automatic Target Recognition (ATR) – tracks reflectors under movement, enabling one-operator operation and reducing manpower overheads.
• Reflectorless R400 mode further adds flexibility for machine control or remote stake-out without constant prism repositioning.

Connectivity, Data & Field Workflow

• Fully integrated communications: Bluetooth, radio handles, data storage (SD/CF), compatible with Leica field controllers (CS15, CS10) and SmartWorx Viva software.
• Ergonomic field controller support: The CS15 (or CS10) offers a colour screen, touch interface, radio connectivity with the TS12.
• On-board software simplifies workflows: Setup, stake-out, topographic, layout – all in one instrument.

Environment & Physical Characteristics

• Operating temperature range: -20 °C to +50 °C; storage -40 °C to +70 °C.
• Dust & water protection: IP54 rating.
• Weight: approx. 4.8-5.5 kg including battery & tribrach (TS12 family).

Applications & Benefits

Applications

• Construction layout and stake-out: The TS12 P 5″ R400 is ideal for building layout, excavation control, slab staking and similar tasks requiring high accuracy, mobility and speed.
• Machine control systems: In scenarios where robotic total stations support machine guidance (graders, dozers, pavers), the robotic drives, ATR and reflectorless capability allow efficient one-operator workflows.
• Survey control & monitoring: With its accuracy and advanced features, it is suited for establishing survey control networks, as-built verification or moderate monitoring tasks.
• Topographic and site surveys: The reflectorless R400 mode enables reaching hard-to-access surfaces (bleachers, towers, stockpiles) without requiring prism placement.
• Layout for infrastructure: Road/rail works, utility corridor layouts, civil infrastructure jobs where robotic automation increases efficiency.

Benefits

• Increased Efficiency: With PowerSearch, ATR and motorised drives, the TS12 P reduces setup and measurement time, enabling faster turnaround on site.
• Reduced Crew Size: The one-person robotic workflow lowers manpower needs, which means cost savings in labour.
• Versatility: The combination of prism and reflectorless mode gives flexibility across job-types, reducing the need for multiple instruments.
• Field-robust: Built to handle job-site conditions, temperature extremes, dust & water—so less downtime and lower risk of field issues.
• Future-proof: Since it uses Leica’s ecosystem (controllers, software, accessories), it integrates with existing workflows and can adapt as your survey fleet evolves.
