Trimble S6 DR 300 3" Robotic R8 GPS GNSS RTK TSC3 Set

We are selling Trimble S6 DR 300 3” Sec Robotic Total Station with Vision and R8 model 3 GNSS RTK set with TSC3. This is a complete set!

Everything is in excellent great working order and ready to go out to survey on the field. System consist of a Trimble S6 DR 300 3” Sec Robotic Total Station and a Trimble R8 model 3 GNSS system. They both work off a TSC3 with Access software and 2.4ghz radio.

Now you can switch off between your robot and GPS at the touch of a button. The robot is Reflectorless, has Auto-lock and the laser pointer. Included is a MT-1000 multi-prism which is one of the best tracking systems on the market. The base and rover both 450-470mhz frequency internal radio's with UHF Transmit (TX) option enabled in both receivers.

Either one can function as a base station or a rover without a need for an external radio. Both are currently programmed at 12.5khz (so you would be FCC compliant). These unit's also have the 20hz update rate option enabled which makes them extremely fast. You can also use both system independently. The Roading module can be added for additional cost.

Robotic station includes:

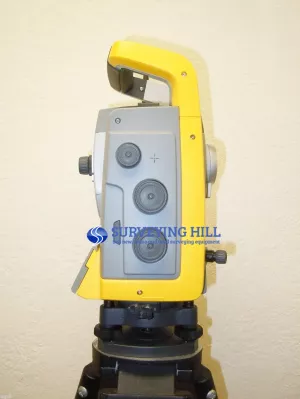

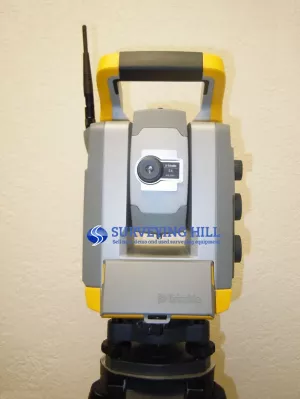

• Trimble S6 DR 300+ Precision 3” Robotic Total Station No vision

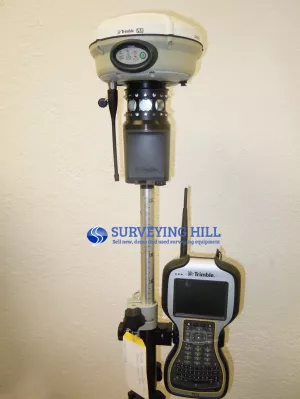

• Trimble TSC3 with Access 2015 Software 2.4 ghz radio
• Trimble MT1000 Multiprism
• Charging Kit
• Cables (Hirose to Hirose, Hirose to USB)
• 3X Batteries

GNSS system includes:

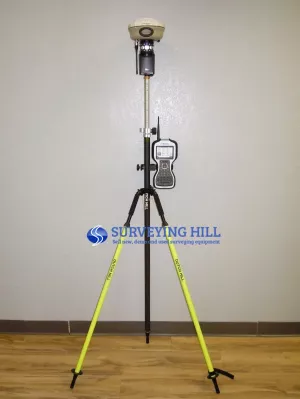

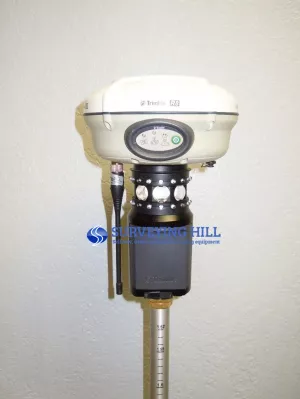

ROVER: Trimble R8-3 Rover, 20hz update rate, Dual frequency L1, L2, L2c, L5, GNSS Bluetooth, RTK capable, 450-470mhz internal RX/TX radio,

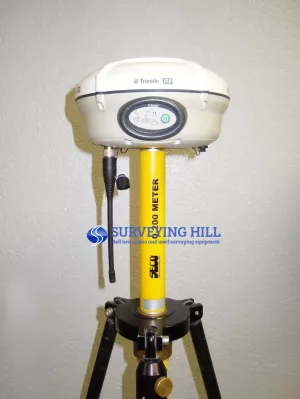

Base: Trimble R8-3 Rover, 20hz update rate, Dual frequency L1, L2, L2c, L5, GNSS Bluetooth, RTK capable, 450-470mhz internal RX/TX radio,

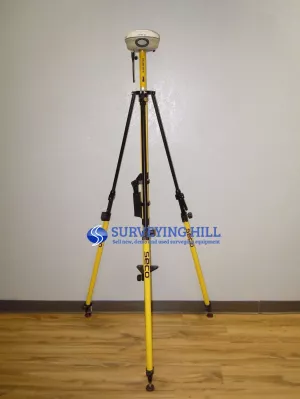

• Seco Fixed meter Tripod
• Dutch Hill Tripo
• Prism Pole
• Dutch Hill Bi-pod
