Leica PowerTracker X 3" Robotic Station

Leica PowerTracker X 3” Robotic Station for sale, complete set with Leica MCP950c Data Collector, Leica RH1200 Radio Handle, etc. Reliable Robotic Station for machine control or stakeout

All gears has been tested and serviced by Leica authorized, everything is in excellent and ready to working to survey condiiton. Come includes Leica MCP950c data collector with color screen and Carlson Site Foreman software. Registered modules TS, Robotics and PowerSearch. The Reflectorless can be enabled for additional cost. The unit has Bluetooth and ATR. The 360 prism is in great shape. No cracks in the glass.

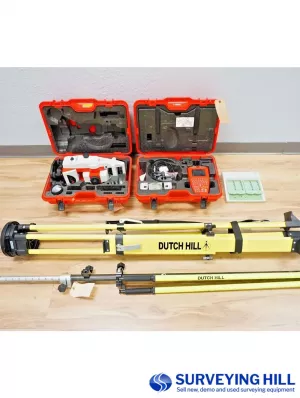

Includes:

• Leica PowerTracker X 3” Robotic Station

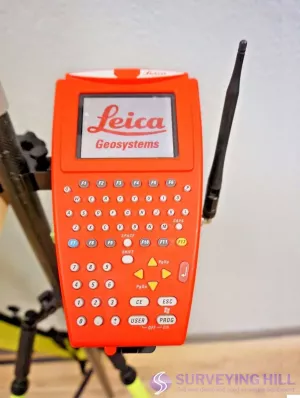

• Leica MCP950c Data Collector
• Leica RH1200 Radio Handle

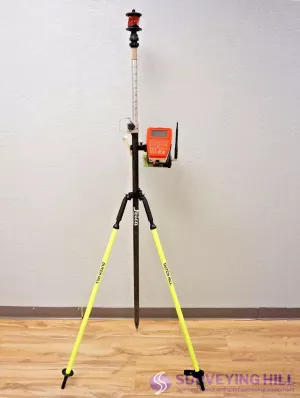

• Leica 360 Prism
• Leica GHT-56
• Leica GFU23
• Leica Charger
• 2x Batteries for the Station
• 2x battery for the Data Collector
• Cables

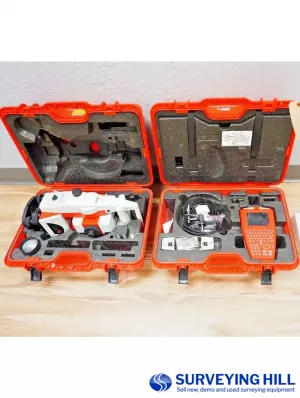

• 2x Case
• Leica SmartCharger
• Dutch Hill Tripod
• Leica Prism Rod
• Dutch Hill Bi pod

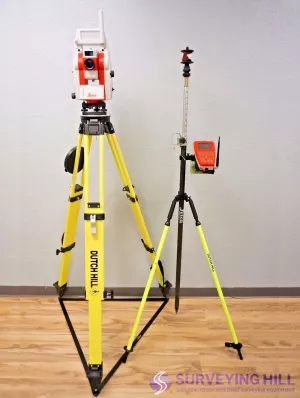

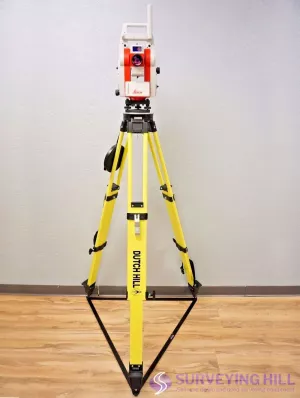

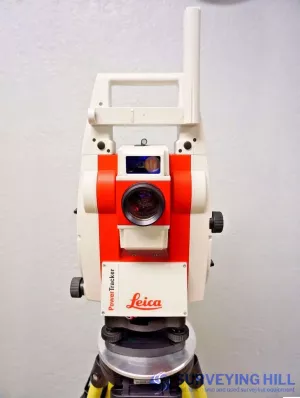

Leica PowerTracker X 3″ Robotic Station

The Leica PowerTracker X 3″ Robotic Station sets the benchmark for precision, automation and field-versatility in construction-grade survey instrumentation. With a proven angular accuracy of 3″, automatic prism-tracking drives and rapid “PowerSearch” acquisition, this motorised total-station is engineered for one-man robotic control and machine-control workflows on the toughest job sites. The dual-axis compensator and robust construction ensure reliable performance across a wide range of field conditions.

Equipped with long-range IR EDM to prism, motorised horizontal and vertical drives, ATR tracking and flexible data handling, the PowerTracker X transforms field workflows—reducing manpower, speeding up measurement and increasing accuracy all at once. For professionals demanding precision and automation, this is the ideal total-station solution.

The Leica PowerTracker X 3″ Robotic Station is a high-precision, motorised total station engineered for robust machine-control, stake-out and construction-survey applications. It delivers an angular accuracy of 3″ (1 mgon) under ISO 17123-3 conditions, combining Leica’s advanced angle-measuring technology, automatic target-tracking, and optional remote-control functionality.

Built for the demanding construction and surveying environment, the PowerTracker X supports rapid prism-search, automatic fine-pointing (ATR), a dual-axis compensator, and a durable design suited to field conditions

Key Features

Accuracy & Angle Measurement

• Angular accuracy: 3″ (standard deviation per ISO 17123-3) for both horizontal and vertical axes.
• Display resolution: 0.1″ (0.5 mgon).
• Absolute, continuous, diametrical angle measurement using a line-coded glass circle read by a linear CCD array — eliminating the need for frequent instrument re-initialisation.
• Dual-axis electronic compensator with a working tilt range of up to 4′ (~0.07 gon) to correct for instrument mis-leveled conditions. Setting accuracy: approx. 1.0″ (0.3 mgon) for the X model.

Distance Measurement (EDM) & Tracking

• IR-Mode (reflector prism): The instrument uses infrared laser phase-measurement technology for prism-based distance measurements.
• Range to standard prism (GPR1) approx. 1,800 m (with higher ranges available depending on model and conditions) for the PowerTracker family.
• For 360° prisms (e.g., GRZ4): ranges up to ~800 m in standard configuration.
• The instrument supports the motorised drives and ATR (Automatic Target Recognition) for rapid lock-on and tracking of prisms/reflectors — key for robotic or one-man operation.

Robotic / Automated Operation

• Motorised drives (horizontal & vertical) enable the instrument to automatically slew and engage reflectors/prisms under remote-control or robotic mode.
• Support for “PowerSearch” technology (rapid rotating laser fan that hunts for the prism) is available in the PowerTracker family — enabling quick initial prism acquisition.
• Designed for machine-control and one-man robotic workflows (meaning a single operator can handle instrument + prism-pole).

Durability, Field Suitability & Accessories

• Built for rugged jobsite conditions: designed to withstand water/dust ingress (to a certain IP rating) and wide temperature ranges.
• Compatible with Leica’s system accessories (batteries, chargers, tribrachs, reflectors/prisms, remote-control handles) as part of the “System 1200 / PowerTracker” ecosystem.
• Cordless operation via Lithium-Ion internal battery GEB221 (7.4 V / 4.4 Ah) in the equipment list for the model.

Typical Applications & Benefits

• Construction Machine Control: The PowerTracker X is particularly suited for installation on construction sites for machine-control systems (graders, dozers, pavers) where accurate prism-tracking, automated pointing, and robust performance are essential.
• Robotic Surveying and Stake-out: Enables one operator to perform surveying or staking tasks while the instrument automatically tracks the prism and communicates with a field controller or tablet.
• Engineering & Site Surveying: The high angular accuracy and long range support survey tasks where precision is critical, such as topographic surveys near roads, tunnels or infrastructure.
• Efficiency & Productivity: With automatic target acquisition (ATR) and PowerSearch, setup and prism acquisition times are significantly reduced on site, thereby increasing productivity and reducing manpower demands.
